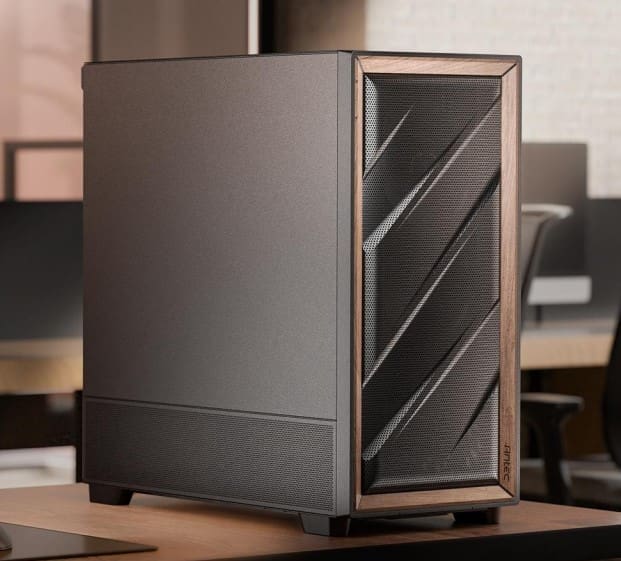

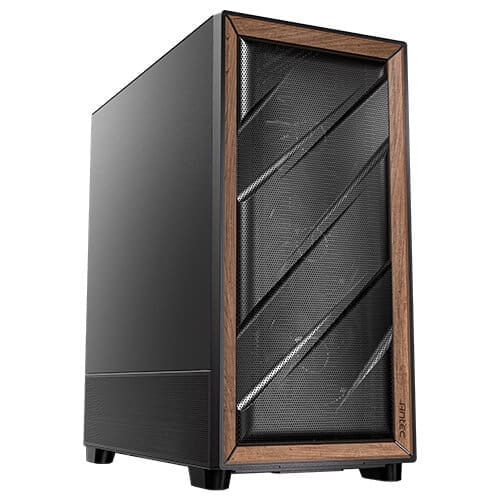

Antec Flux SE – Wallnut, Mid Tower, E-ATX/Micro-ATX/ITX, F-LUX Airflow, 5xPWM Fans, E-ATX, 420mm Rad, 408mm GPU, USB-C 10Gbps, 2Yr Wty

Flow Luxury
F-LUX Platform, abbreviation of Flow Luxury, features ultra case structure design for excellent airflow and 5 x 120 mm fans included, delivering enhanced GPU cooling performance.

Flux Airflow
Multi-directional vent design, featuring extensive air intakes at the bottom, power supply chamber and lower sides, along with top vents and large-area mesh at the front, creating a dedicated Antec Flux airflow channel.

Flux Vertical Cooling
Air intake via the PSU chamber maximizes heat dissipation while enhancing the intake effect for the graphics card.

Flux Horizontal Cooling
Air intake via the front mesh provide smooth venting channel throughout the case.

Premium Wood
Front panel is crafted with a combination of metal mesh and wood (walnut) to create a high-quality texture with different materials, integrating seamlessly into your home design.

Optimized Chassis Design
Front is recessed, fostering better airflow and reducing wind noise.

Removable Top Cooling Bracket
Mount the fans/radiators on the cooling bracket first and install the cooling bracket back to the case.

Recommended Water Cooling
Supports simultaneous installation of Front 360mm radiator + Top 360mm radiator.

Extreme Water Cooling
Supports simultaneous installation of Front 420mm push-pull radiator + Top 280mm radiator.

SPECIFICATIONS
main spec
Dimensions 484 x 239 x 502 mm (DWH)
Form Factor Mid Tower
Materials Steel + Plastic + Wood
Mainboard Support E-ATX (≤330mm), ATX, Micro-ATX, ITX
Front Access Controls Power, Reset, USB 3.0 x 2, Type-C 10Gbps x 1, Headphone/Mic Combo Jack
Side Panel Sound Dampening Side Panel (Both Sides)

Drive Bays
Expansion Slots 7
3.5″ /2.5″ 2 / 2
2.5″ 1

Fan Support
Front 3 x 120mm / 3 x 140mm
Top 3 x 120mm / 2 x 140mm
Power Supply Shroud 2 x 120mm / 2 x 140mm
Rear 1 x 120mm / 1 x 140mm
Included Fan(s) 3 x 120mm PWM fans in front + 1 x 120mm PWM Reverse fan on PSU shroud
+ 1 x 140mm PWM fan in rear

Radiator Support
Front 120 / 140 / 240 / 280 / 360 / 420mm
Top 120 / 140 / 240 / 280 / 360mm
Rear 120 / 140mm

Clearance
Max GPU Length ≤ 408mm
Max CPU Cooler Height ≤ 180mm
Max PSU Length (Include cable) ≤ 235mm (with HDD)

Miscellaneous
Dust Filter Bottom
Net Weight 8.8 Kg
Gross Weight 10.3 Kg
Warranty 2 Years
UPC# 0-761345-10177-6
