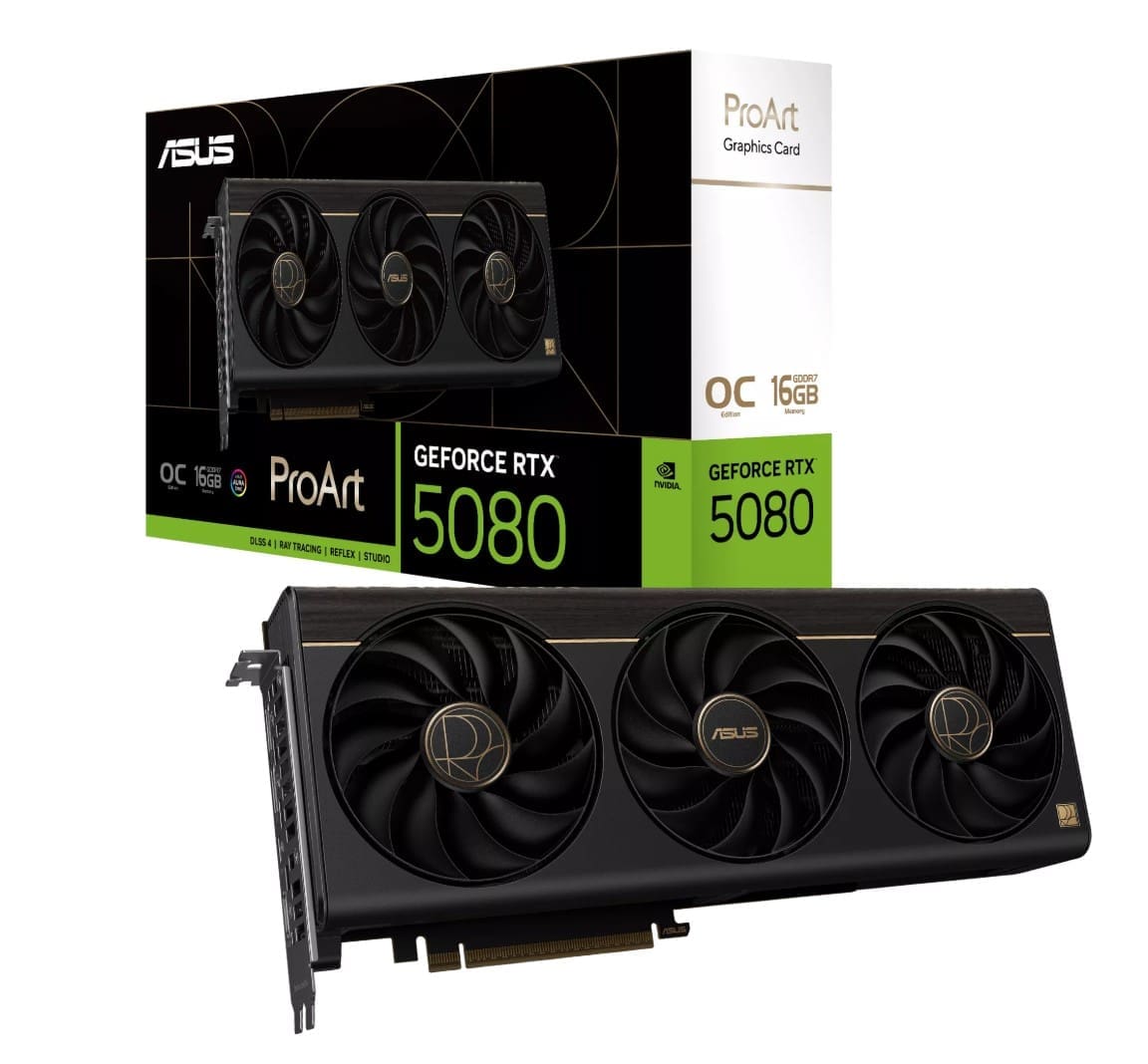

ASUS nVidia GeForce ProArt RTX™ 5080 16GB GDDR7 OC Edition

SPECIFICATION
Graphic Engine
NVIDIA® GeForce RTX™ 5080

AI Performance
1801 TOPs

Bus Standard
PCI Express 5.0

OpenGL
OpenGL®4.6

Video Memory
16GB GDDR7

Engine Clock
OC mode: 2730 MHz
Default mode: 2700 MHz (Boost Clock)

CUDA Core
10752

Memory Speed
30 Gbps

Memory Interface
256-bit

Resolution
Digital Max Resolution 7680 x 4320

Interface
Yes x 1 (Native HDMI 2.1b), Yes x 2 (Native DisplayPort 2.1b), Yes x 1 (USB Type-C), HDCP Support Yes (2.3)

Maximum Display Support
4

NVlink/ Crossfire Support
No

Accessories
1 x Speedsetup Manual
1 x Adapter Cable (1 to 3)
1 x ProArt Graphics Card Holder
1 x ASUS Velcro Hook Loop
1 x Thank you Card

Software
ASUS GPU Tweak III MuseTree GeForce Game Ready Driver Studio Driver: please download all software from the support site.

Dimensions
304 x 126 x 50 mm
12 x 5 x 2 inch

Recommended PSU
850W

Power Connectors
1 x 16-pin

Slot
2.5 Slot

SFF Ready
Compatible

Note
* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
* Maximum Display Support is specifically applied to simultaneous display situation.
