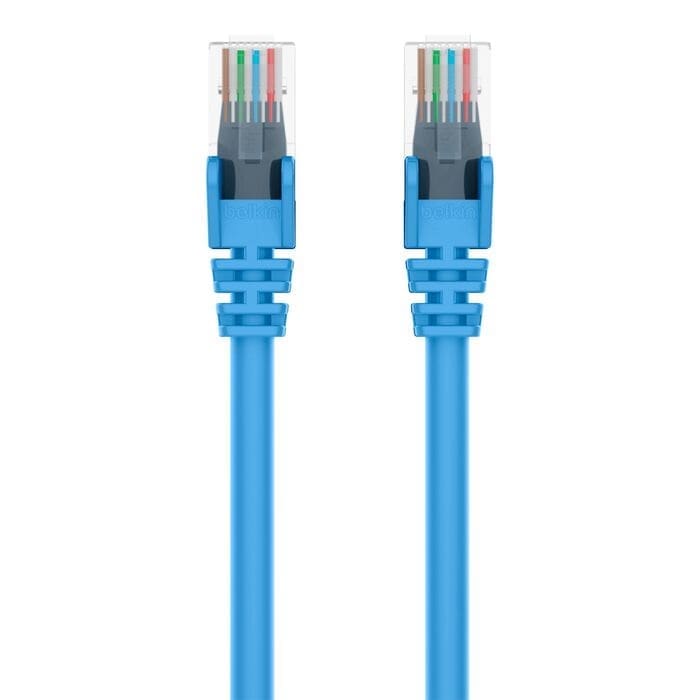

Belkin Cat6 Network Cables (1M) – Blue (A3L980bt01MBLUS)

At a Glance
Maximise your network speed with a 7-foot high-bandwidth CAT6 cable. Learn More
Ideal for VoIP, video, and file transfers
Exceeds 500MHz in performance tests
Belkin 2 year warranty

Compatibility
Compatible with Ethernet enable devices.

Technical Specifications
Cable Characteristic
Unshielded twisted pair (UTP)

Cable Type
Cat 6

Characteristic Impedence
100±15Ω @ 1 ~ 550MHz
100±15Ω @ 1 ~ 550MHz

Conductor Construction
Bare Stranded Copper

Conductor Resistance
93.8Ω/km/20°C max

Conductor Size
24AWG x 4pairs

Connector on First End
1 x RJ-45 – male

Connector on Second End
1 x RJ-45 – male

Connectors
RJ45

Dielectric Strength
AC 1.5kV

Flame Retardant Test
CM

Insulation Material
HDPE

Jacket Diameter
5.9±0.15mm

Jacket Material
PVC

Mutual Capacitance
56pF/m max

Propagation Delay
536nS/100m max @ 550MHz

Spark Test
2.5kV

Standards Compliance
ISO/IEC 11801; TIA/EIA-568-B.2-1

Structural Return Loss
8.6dB min at 550MHz

Limited Warranty
Belkin offers CAT5e and CAT6 copper cables and connectivity products that feature quality components and utilise advanced manufacturing techniques to ensure consistent, top-quality network performance. All Belkin cables are certified and tested to exceed the industry cabling standards, and come with a 2 year warranty.
