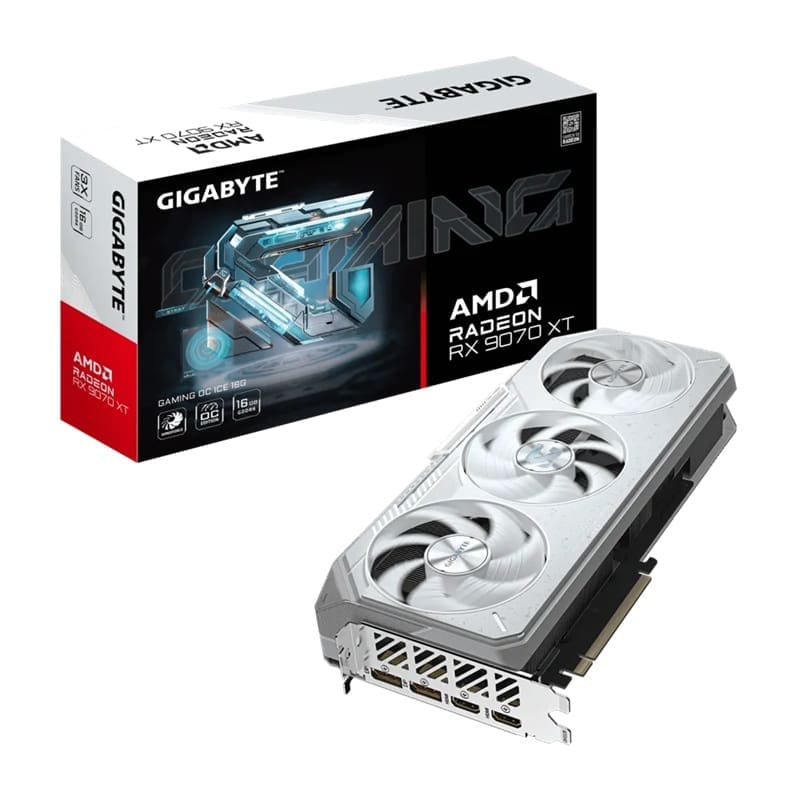

Gigabyte Radeon RX 9070 XT GAMING OC ICE 16G, GDDR6, 3060MHz boost, 2520MHz, 4096 cores, PCIe 5.0, 288mm, 850W, 2x DP 2.1a, 2x HDMI 2.1b

SPECIFICATION
Graphics Processing Radeon™ RX 9070 XT
Core Clock Boost Clock* : up to 3060 MHz (Reference card: 2970 MHz)
Game Clock* : up to 2520 MHz (Reference card: 2400 MHz)
Stream Processors 4096
Memory Clock 20 Gbps
Memory Size 16GB
Memory Type GDDR6
Memory Bus 256 bit
Card Bus PCI-E 5.0
Digital max resolution 7680×4320
Multi-view 4
Card size L=288 W=132 H=56 mm
PCB Form ATX
DirectX DirectX 12 API
OpenGL 4.6
Recommended PSU 850W
Power Connectors 8 pin*3
Output DisplayPort 2.1a *2
HDMI 2.1b *2
Accessories Quick guide
Note
* “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. GD-151
* “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. GD-147
