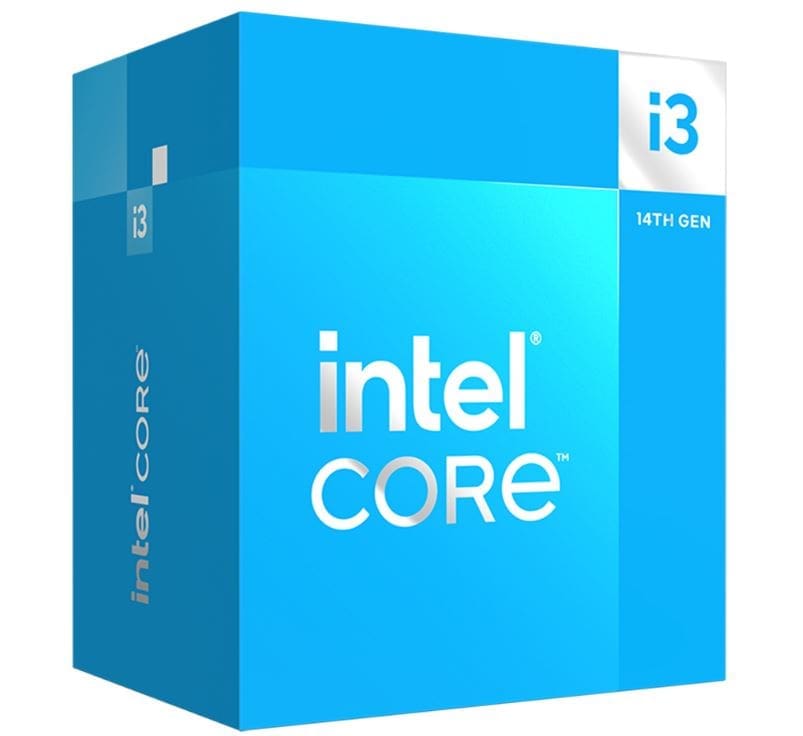

Intel i3 14100 CPU 3.5GHz (4.7GHz Turbo) 14th Gen LGA1700 4-Cores 8-Threads 17MB 60W UHD Graphics 730 Retail Raptor Lake with Fan
CPU Specifications
Total Cores 4
# of Performance-cores 4
# of Efficient-cores 0
Total Threads 8
Max Turbo Frequency 4.7 GHz
Performance-core Max Turbo Frequency 4.7 GHz
Performance-core Base Frequency 3.5 GHz
Cache 12 MB Intel® Smart Cache
Total L2 Cache 5 MB
Processor Base Power 60 W
Maximum Turbo Power 110 W
Memory Specifications
Max Memory Size (dependent on memory type) 192 GB
Memory Types Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels 2
Max Memory Bandwidth 76.8 GB/s
GPU Specifications
GPU Name‡ Intel® UHD Graphics 730
Graphics Max Dynamic Frequency 1.5 GHz
Graphics Output eDP 1.4b | DP 1.4a | HDMI 2.1
Execution Units 24
Max Resolution (HDMI)‡ 4096 x 2160 @ 60Hz
Max Resolution (DP)‡ 7680 x 4320 @ 60Hz
Max Resolution (eDP – Integrated Flat Panel)‡ 5120 x 3200 @ 120Hz
DirectX* Support 12
OpenGL* Support 4.5
OpenCL* Support 3
Multi-Format Codec Engines 1
Intel® Quick Sync Video Yes
Intel® Clear Video HD Technology Yes
# of Displays Supported ‡ 4
Device ID 0x4692
Expansion Options
Direct Media Interface (DMI) Revision 4
Max # of DMI Lanes 8
Scalability 1S Only
PCI Express Revision 5.0 and 4.0
PCI Express Configurations ‡ Up to 1×16+4 | 2×8+4
Max # of PCI Express Lanes 20
Package Specifications
Sockets Supported FCLGA1700
Max CPU Configuration 1
Thermal Solution Specification PCG 2020C
TJUNCTION 100°C
Package Size 45.0 mm x 37.5 mm
