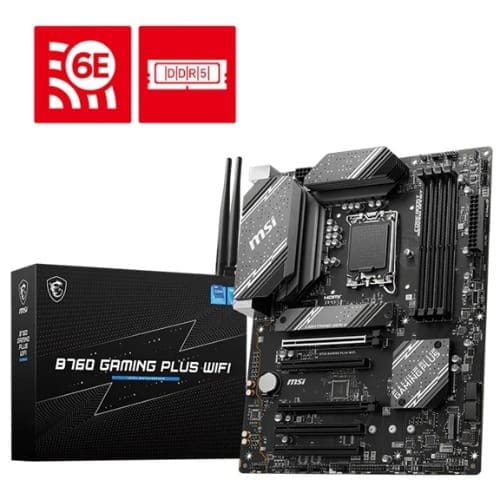

MSI B760 GAMING PLUS WIFI ATX Motherboard, 4x DDR5~192GB, 5x PCI-E x 16, 2x M.2, 4x SATA, 2x USB 3.2 , 4x USB 2.0 1 USBx C

SKU: B760 GAMING PLUS WIFI Category:

$327.00

Available at Supplier

Loading...

MSI B760 GAMING PLUS WIFI ATX Motherboard, 4x DDR5~192GB, 5x PCI-E x 16, 2x M.2, 4x SATA, 2x USB 3.2 , 4x USB 2.0 1 USBx C

FEATURES:
Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, Turbo USB 3.2 Gen 2 10G
2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
High Quality PCB: 6-layer PCB made by 2oz thickened copper
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

SPECIFICATIONS:
CHIPSET INTEL B760
CPU SUPPORT Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA 1700
MEMORY 4x DDR5, Maximum Memory Capacity 192GB
Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

ONBOARD GRAPHICS 1x HDMI™
1x DisplayPort

EXPANSION SLOT 5x PCI-E x16 slot
STORAGE 2x M.2 4x SATA 6G

USB 4x USB 2.0 (Rear)
2x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
PCB DIMENSION (W × L) ATX 243.84mmx304.8mm

Weight 1.6 kg
Dimensions 350 × 274 × 66 mm
Manufacturer

Product Supplier

Barcode

4711377086561
