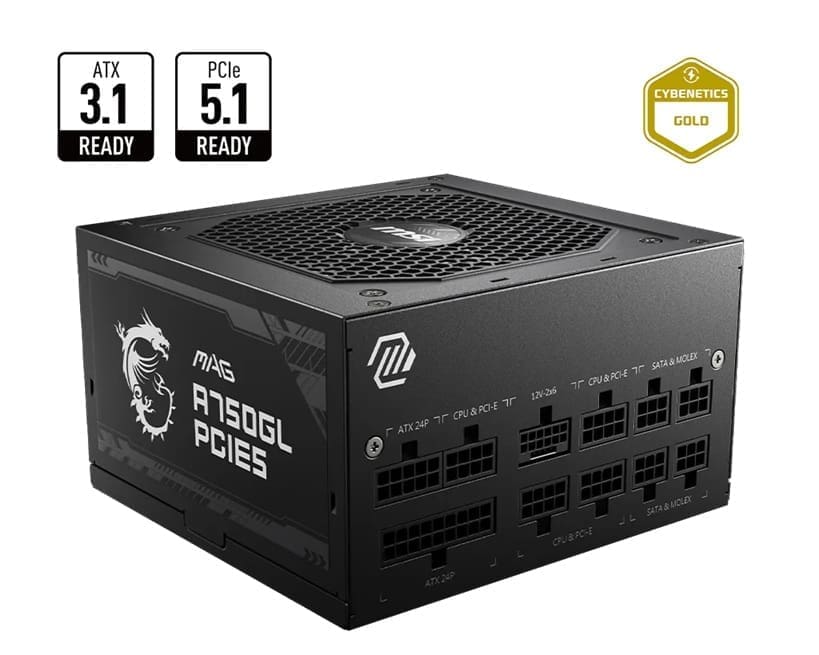

MSI MAG A750GL PCIE5 II Bulk – 750W ATX 3.1, 80+ Gold, full modular, PCIe 5.0 16-pin, 3x PCIe 6+2, 8x SATA, FDB fan, OCP/OVP/OPP/OTP/SCP/UVP, 120mm

SKU: MAG A750GL PCIE5 II Bulk Categories: ,

$180.00

Available at Supplier

Loading...

MSI MAG A750GL PCIE5 II Bulk – 750W ATX 3.1, 80+ Gold, full modular, PCIe 5.0 16-pin, 3x PCIe 6+2, 8x SATA, FDB fan, OCP/OVP/OPP/OTP/SCP/UVP, 120mm

•ATX 3.1 ready, native PCIe 5.1 dual-color 16-pin cable
•Supports NVIDIA® GeForce RTXTM 40 Series graphics cards
•Full modular design,Flat cables
•80 Plus Gold certified for high efficiency
•Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
•120mm Fluid Dynamic Bearing Fan
•LLC Full Bridge Topology with DC-DC module design

SPECIFICATIONS
Efficiency Rating: 80 PLUS Gold (up to 90%)
Modular: Yes (full modular)
Fan Size: 120 mm
Fan Bearing: Fluid Dynamic Bearing
Dimensions (DxWxH): 140 x 150 x 86 mm
PFC Type: Active PFC
Input Voltage Range: 100~240 VAC
Power Watt: 750W
Power Excursion: 1500W (*up to 200% of the PSU’s rated power for 100μs)
Input Frequency Range: 47-63Hz
Protection: OCP / OVP / OPP / OTP / SCP / UVP
ATX (24 pin): 1
EPS (4+4 pin): 2
PCI-E 5.0 (16 pin): 1 (450W)
PCI-E (6+2 pin): 3
SATA (15 pin): 8
PERIPHERAL (4 pin): 4
FDD (4 pin): 1

Spread the love
Weight 2.84 kg
Dimensions 304 × 226 × 128 mm
Manufacturer

Product Supplier

Barcode

4711377366410
