Teltonika 4-PIN POWER ADAPTER WITH I/O ACCESS

SKU: PR5MEC21 Category:

$20.00

Available at Supplier

Loading...

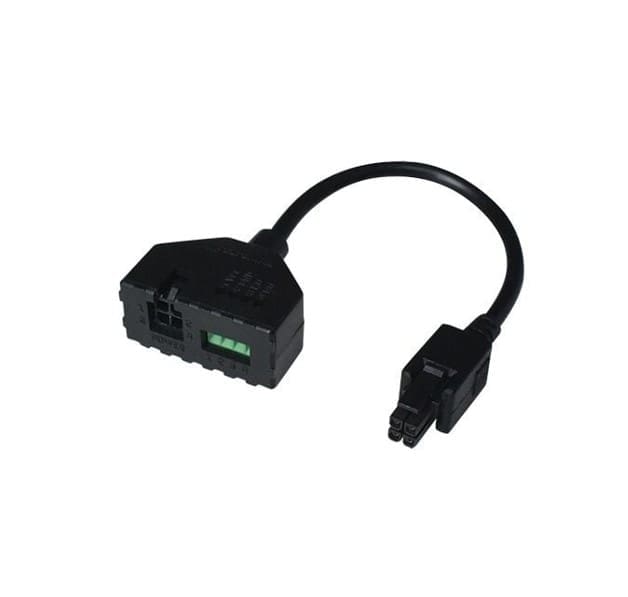

This 4-PIN power connector adapter allows you to easily access I/O functionality for compatible Teltonika Networks devices. It features a standard 4-PIN to 4-PIN power connection with an additional terminal for configurable digital inputs and outputs.

TECHNICAL DATA
GENERAL
Input connector 4-pin, 3 mm pitch and 4-way screw terminal block
Output connector 4-pin, 3 mm pitch
Cable 4 x 0.20 mm² (24 AWG), 100 mm
Screwdriver type Micro slotted
Weight 15 g.
*CONNECTION DATA
Conductor cross section solid / flexible 0.14 – 0.50 mm² (26 – 20 AWG)
Conductor cross section flexible, with ferrule, with plastic sleeve 0.25 – 0.30 mm² (23 – 22 AWG)
Pinout 1 Pin: Power +
2 Pin: Ground –
3 Pin: Input/Output
4 Pin: Input/Output

Weight 0.1 kg
Dimensions 148 × 4 × 12 mm
Manufacturer

Product Supplier

Barcode

PR5MEC21
