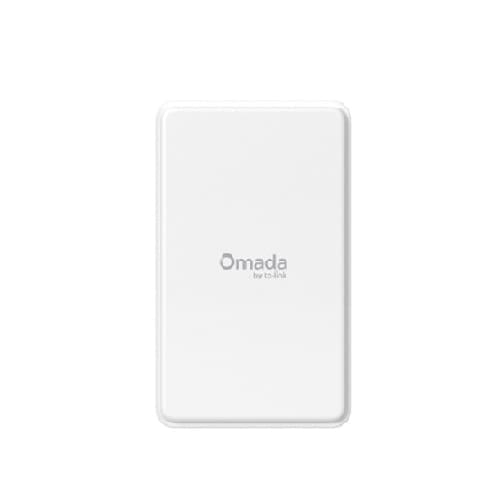

TP-Link ER701-5G Outdoor Omada 5G Gateway with Dual Nano SIM Support, PoE Power Input, 2.5G Ethernet Port, Enterprise Routing, VLAN, Firewall, and Omada Cloud Management
Device
•Outdoor 5G Gateway / Router
Dual
•Nano SI
•PoE powered
•
Omada-managed
Cellular – 5G NR
•
Bands:
n1 / n3 / n5 / n7 / n8 / n20 / n26 / n28 / n38 / n40 / n41 / n75 / n76 / n77 / n78
•
Frequencies:
700 / 800 / 850 / 900 / 1500 / 1800 / 2100 / 2300 / 2500 / 2600 / 3500 / 3700 MHz
•
SA:
7.01 Gbps ↓ / 1.25 Gbps ↑
•NSA:
4.5 Gbps ↓ / 730 Mbps ↑
Cellular – 4G LTE
•
FDD:
B1 / B3 / B5 / B7 / B8 / B20 / B26 / B28 / B32
•TDD:
B38 / B40 / B41 / B42 / B43
•
Speed:
1.6 Gbps ↓ / 211 Mbps ↑
Cellular – 3G
•
WCDMA:
B1 / B5 / B8
SIM
•1 × Dual Nano SIM slot
•
Failover supported
Ethernet
•1 × 2.5G RJ45
•10 / 100 / 1000 / 2500 Mbps
•PoE:
•802.3at (42–57 V, 0.6 A)
•
Passive 48 V
Wireless (Local)
•
2.4 GHz only
•
802.11 b / g / n
•
150 Mbps max
•
WPA / WPA2-Personal
•
1 SSID
•TX power control
•
Auto channel selection
Routing / Switching
•Static routing
•
OSPF (Standalone)
•
Bridge VLAN
•
802.1Q VLAN
•
Multi-Net interfaces
NAT / Firewall
•
Multi-Net NAT
•
Virtual server
•
Port triggering
•
NAT-DMZ
•ALG: FTP / SIP / IPSec / PPTP / H.323
•
UPnP
•Stateful ACL
Storage / Memory
•4 GB eMMC
•2 GB LPDDR4x
Power
Max consumption:
•15.3 W
Physical
Dimensions:
•183 × 110 × 36 mm
•
Wall / pole / window mount
•
Waterproof kit included
Warranty Period: 3-Year
