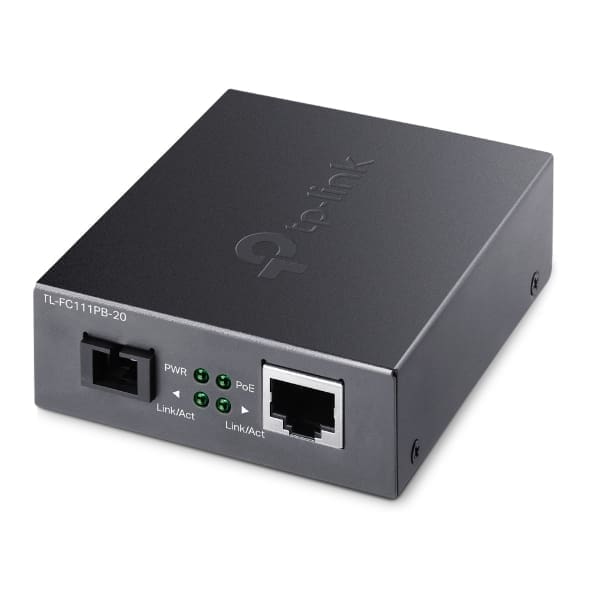

TP-Link TL-FC111PB-20 10/100Mbps WDM Media Converter with 1-Port PoE – IEEE 802.3u, 20KM, 1310 nm TX, 1550 nm RX

SKU: FC111PB-20 Category:

$59.00

Available at Supplier

Loading...

TP-Link TL-FC111PB-20 10/100Mbps WDM Media Converter with 1-Port PoE

• Converts the data between fiber (optical signal) and copper (electric signal).
• Extends fiber distance up to 20 km.
• The 802.3af PoE output makes remote camera deployment easier and more convenient.
• WDM (Wave Division Multiplexing) technology enables to transmit and receive data over one single fiber strand instead of two.
• Wide operating temperature (0–50 ℃) with reliability.
• Auto-negotiation of Half-Duplex/Full-Duplex transfer mode.

NETWORK
Standards and Protocols IEEE802.3, IEEE802.3i, IEEE802.3u

ENVIRONMENT
Operating Temperature 0–50 °C (32–122 °F)
Storage Temperature -40–70 °C (-40–158 °F)
Operating Humidity 10–90% RH non-condensing
Storage Humidity 5–90% RH non-condensing

HARDWARE FEATURES
Network Media 100BASE-Tx: 2-pair UTP/STP of Cat. 5 or above (≤100 m)
Power Supply 48 V/0.5 A
LED PWR, Link/Act, PoE
Dimensions ( W x D x H ) (94.5×73.0×27.0 mm)
Wave Length 1310 nm TX, 1550 nm RX

ANTENNA
Connector Type • 1× 10/100 Mbps PoE RJ45 port
• 1× 100 Mbps SC fiber port
MEDIA CONVERTER MODULE
Fiber Type 9/125 μm single-mode fber (≤20 km)

Weight 0.42 kg
Dimensions 168 × 206 × 66 mm
Manufacturer

Product Supplier

Barcode

4897098683064
