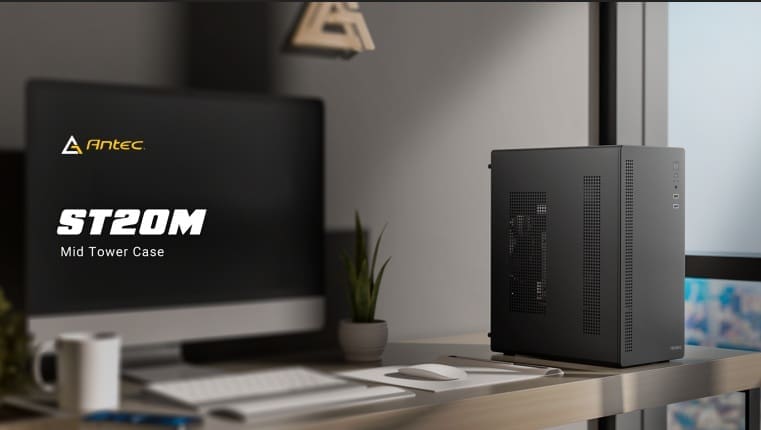

Antec ST20M + VPA550P

Pre-installed 550W power supply

MAIN SPEC
ST20M
Dimensions 275x 180 x 352mm (DWH)
Form Factor Mid Tower
Materials Steel
Motherboard Support Micro-ATX, ITX
Front Access Controls Power, Reset, USB 2.0 x 1, USB3.0 x 1, Headphone/Mic Combo Jack

DRIVE BAYS
Expansion Slots 4
3.5″ 1
2.5″ 1

FAN SUPPORT
Rear 1 x 120mm
Included Fan(s) 1 x 120mm fan at the rear

CLEARANCES
Max GPU Length ≤265mm
Max CPU Cooler Height ≤150mm
Max PSU Length (Cableincluded)≤160mm

MISCELLANEOUS
Net Weight 2.01Kg
Gross Weight 2.48Kg
Warranty 1Year
UPC 0-761345-10288-9

VPA550P
Safe Model V3000A175EC-26
Type ATX 12V 2.3
Dimension 140(L) x 150(W) x 86 (H)
Modular Non-Modular
Input Voltage 200V-240V
Input Current 4A Max
Input Frequency Range 50Hz-60Hz
PFC Active PFC
Power Good Signal 100-500ms
Protection OVP, SCP, OPP, NLO
Output CApacity 550W
Operation Temperature 0-30°C
Regulatory CB/CE
Fan 120MM Silent Fan

Connector
1 x 240(20+4)pin MB
1 x 8(4+4)pin CPU
2 x 8(6+2)pin PCI-E
6 x SATA
2 x Molex
