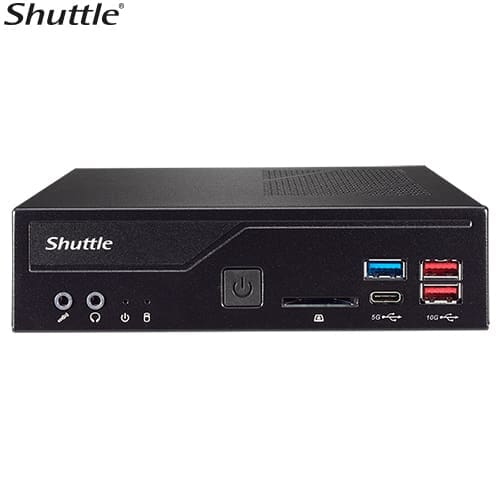

Shuttle DH670 Slim Mini PC 1L Barebone-Support Intel 12th Gen, 2x DDR4, 2.5″ HDD/SSD bay, 2xLAN, 2x RS232(RS422/485), 2xHDMI, 2xDP, 120W

SKU: DH670 Category:

$813.00

Available at Supplier

Loading...

Shuttle DH670 Slim Mini PC 1L Barebone-Support Intel 12th Gen, 2x DDR4, 2.5″ HDD/SSD bay, 2xLAN, 2x RS232(RS422/485), 2xHDMI, 2xDP, 120W

Form Factor
1.3L chassis

Processor
Support Intel 12/13th LGA1700 socket Core i3/i5/i7/i9, Pentium, Celeron 65W Processor
BIOS v2.05 and updated version support Raptor Lake (13th) CPU

Chipset
Intel H670 Express Chipset

Memory
2x DDR4 SODIMM slots,32GB per DIMM (Max 64GB) DDR4 up to 3200 MHz

Video Output
HDMI 2.0 x 2+ DisplayPort x 2, Quad Video Outputs
4K playback (Dual Channel Memory Recommended) Integrated in CPU

Audio
Realtek ALC662/897/888S High Definition Audio

Ethernet
2x Intel Gigabit LAN (DH670)
2x Intel 2.5GbE LAN (DH670 V2)
Supports 10/100/1000 Mb/Sec.
Support wake ON LAN (WOL) feature

Storage Interface
SATA 6.0Gb/s interface

Onboard Connectors
1x 4pin fan connector
1x VGA(For PVG01 use)
1x 1×4 pin USB header(For WWN03 use)
1x SATA connector w/power
1x Front audio header
1x Auto power on header
1x RS232 voltage switch

Front Panel
2x USB 3.2 Gen1 ports
2x USB 3.2 Gen2 ports
1x Microphone-In
1x Line-Out
1x Power-On button
1x Power LED
1x HD

Back Panel
2x RJ45 LAN ports
2x HDMI port
2x Display port
2x USB 3.2 Gen1 ports
2x USB 3.2 Gen2 ports
1x RS232
1x RS232/RS422/RS485
1x External 4pin header
1x DC-in
2x Wireless Antenna fixture
1x Kensington lock

Drive Bays
1x 2.5″ HDD / SSD bay

Dimensions
190(L) x 165(W) x 43(H) mm

Power
120W Power Adapter
Input:100- 240V AC
19V 6.32A

Accessories
VESA mount
VESA Screw pack
120W adapter

Expansion Slot
1x M.2 2280 Type M key socket
1x M.2 2230 Type E key socket

OS Support
Windows 10/11 64 bit O.S
Linux

Weight 2.52 kg
Dimensions 246 × 258 × 138 mm
Manufacturer

Product Supplier

Barcode

887993005942
