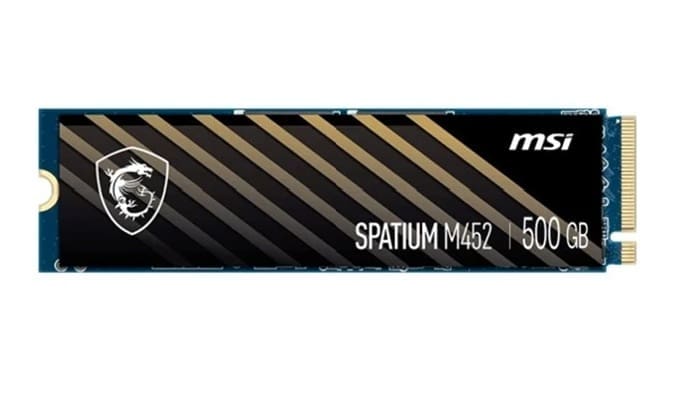

SPATIUM M452 PCIe 4.0 NVMe M.2 500GB (S78-440K210-P83)

PRODUCT SPECIFICATION
Model Name SPATIUM M452 PCIe 4.0 NVMe M.2
Capacity 500GB
Controller PHISON E29T
Flash Memory 3D NAND
Form Factor M.2 2280
Interface PCIe Gen4 x4, NVMe 1.4 (2CH)
Compatibility PCIe Gen4 / Gen3 / Gen2 / Gen1
Dimensions 80.00mm (L) x 22.00mm (W) x 2.15mm (H)
Sequential Read up to (MB/s) 3600
Sequential Write up to (MB/s) 3100
Random Read 4KB up to (IOPS) 470,000
Random Write 4KB up to (IOPS) 750,000
Idle Power PS3 (mW) 50
Low Power L1.2 (mW) 5
Operating Temperatures 0°C – 70°C
Storage Temperatures -40°C – 85°C
Terabytes Written (TBW) 150
Mean Time Between Failure (MTBF) Up to 1,500,000 Hours
Limited Warranty 5 Years, or the coverage for the maximum TBW as stated, whichever comes first.

Advanced Features
TRIM (Performance Optimization, OS Support required)
SMART (Self-Monitoring, Analysis and Reporting Technology)
LDPC (Low Density Parity Check) ECC Algorithm
End to End Data Path Protection
APST (Autonomous Power State Transition)
Pyrite (Encryption, Data Security)
